Lifting Water Bag Water Weight Bag High Quality Loading Test Water Bag

Lifting Water Bag Water Weight Bag High Quality Loading Test Water Bag





 Specifications:

Easy to store and transport,
Durable and strong,
Easy to fill and discharge,
Repairable,
Equipped with an automatic pressure relief valve




Capacity as following(Body Made by 1.2MM Thickness High Strength PVC Coated Fabric Cloth)

Item	Types	Related Capacity(T)	Diameter (M)	Length (M)	Empty Weight (Kg)
1	MME-0.25T	0.25	0.8	1.2	8
2	MME-0.5T	0.5	1.0	1.5	10
3	MME-1T	1	1.2	1.8	19
4	MME-2T	2	1.5	2.3	22
5	MME-3T	3	1.8	2.7	28
6	MME-4T	4	1.9	2.9	52
7	MME-5T	5	2.3	3.3	67
8	MME-6T	6	2.4	3.4	84
9	MME-8T	8	2.54	3.6	104
10	MME-10T	10	2.65	3.9	108
11	MME-12.5T	12.5	2.9	4.1	112
12	MME-13T	13	2.9	4.2	128
13	MME-15T	15	3.0	4.35	130
14	MME-20T	20	3.5	6.0	156
15	MME-25T	25	3.9	6.1	190
16	MME-30T	30	4.0	8.2	210
17	MME-35T	35	4.3	6.8	300
18	MME-40T	40	4.5	7.4	390
19	MME-50T	50	5.1	7.7	450

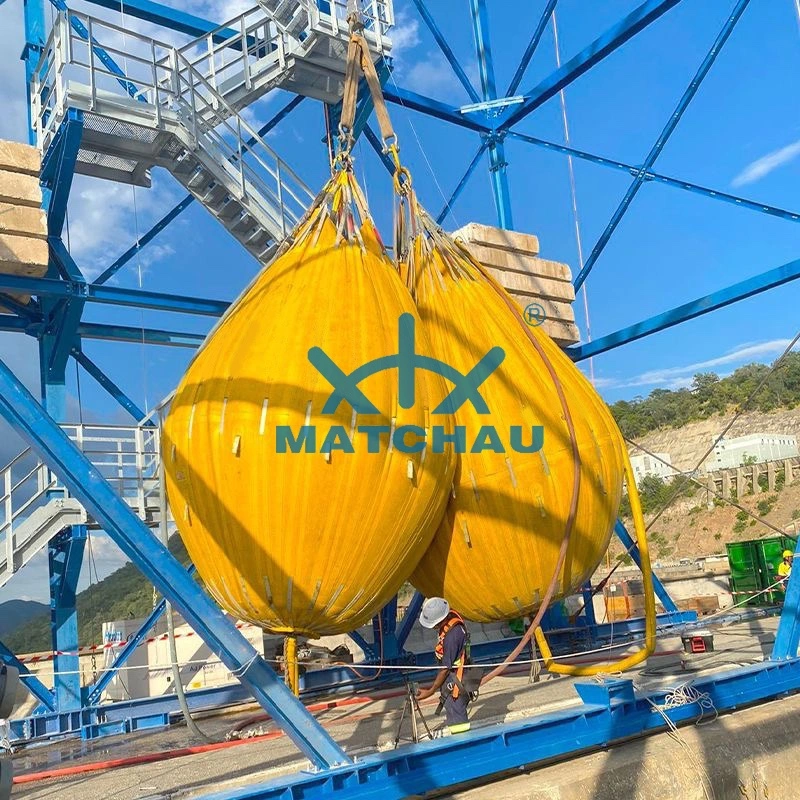

Using water bags for your proof load testing requirements has many advantages:

1:Safe:The bags have a physically proven factor of safety in excess of 6:1 and are proof load tested to over 2:1 prior to being taken into service.

2:Since water bags are constructed from a light weight and pliable PVC fabric, they can  be rolled up and packaged into containers that allow for economical shipping to your  work site - across the China and worldwide from our service center in China. The  packaged weight of water bags is approximately 1% of its weight when filled with water.

3:Application of test loads occurs gradually as the water bag is filled with load water. This prevents shock loading and allows for the early identification of technical problems  with the equipment being tested.  It is also possible for the operator to stage   up to the final proof-load using intermediate hold points and test hoisting/braking capability of equipment prior to reaching full test load.

4:Release of test fluid is performed by draining water from the water bags, avoiding the  need to lower the test load in critical or hazardous areas.

5:Because of their compact size, water bags and load measurement equipment can, in  many cases, be transported by pick-up truck and small commercial trailers.

We may build to your special and unique requirements. If you want to know more about our Light Weight Water Bag ,kindly send email and discuss with us.

Contact us if you need more details on Lifting Water Bags. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Load Test Water Bags、Test Water Bag. If these products fail to match your need, please contact us and we would like to provide relevant information.
