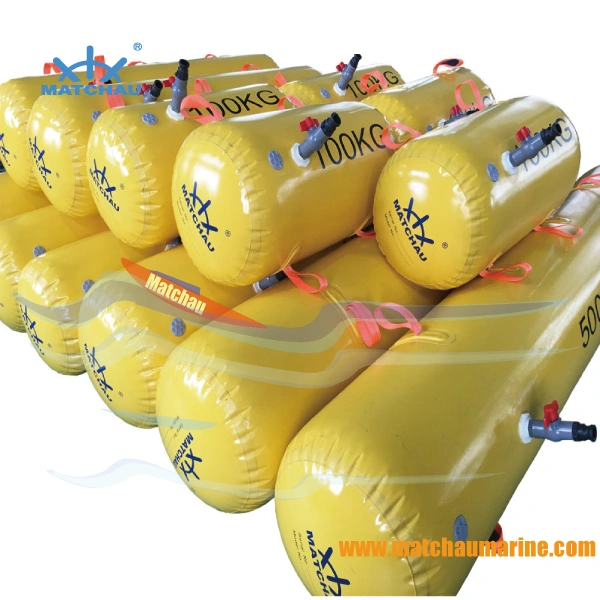

Crane Load Testing Water Filled Weight Bags

Crane Load Testing Water Filled Weight Bags

1.Specifications:

1). Easy to store and transport;

2). Durable and strong;

3). Easy to fill and discharge;

4). Repairable, Equipped with an automatic pressure relief valve;

5). Good quality and competitive price.

2.Main Details:


Model	Proof Load Weight (KGS)	Diameter (M)	Length (M)	Bag Weight (KGS)
MME-100KG	100	0.44	0.85	4
MME-250KG	250	0.44	1.70	6
MME-375KG	375	0.44	2.60	7
MME-400KG	400	0.46	2.60	10
MME-500KG	500	0.50	2.60	12



Item	Types	Related Capacity (T)	Diameter (M)	Length (M)	Empty Weight (Kg)
1	MME-0.25T	0.25	0.8	1.2	8
2	MME-0.5T	0.5	1.0	1.5	10
3	MME-1T	1	1.2	1.8	19
4	MME-2T	2	1.5	2.3	22
5	MME-3T	3	1.8	2.7	28
6	MME-4T	4	1.9	2.9	52
7	MME-5T	5	2.3	3.3	67
8	MME-6T	6	2.4	3.4	84
9	MME-8T	8	2.54	3.6	104
10	MME-10T	10	2.65	3.9	108
11	MME-12.5T	12.5	2.9	4.1	112
12	MME-13T	13	2.9	4.2	128
13	MME-15T	15	3.0	4.35	130
14	MME-20T	20	3.5	6.0	156
15	MME-25T	25	3.9	6.1	190
16	MME-30T	30	4.0	8.2	210
17	MME-35T	35	4.3	6.8	300
18	MME-40T	40	4.5	7.4	390
19	MME-50T	50	5.1	7.7	450

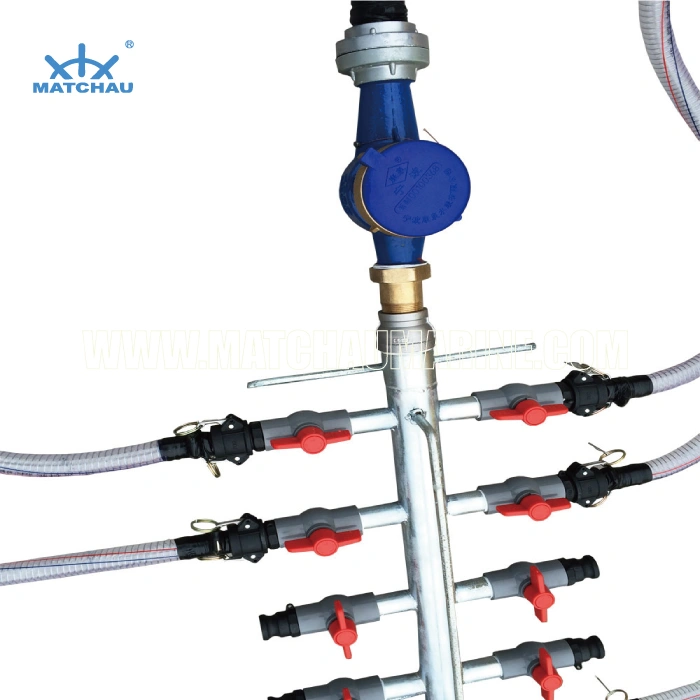

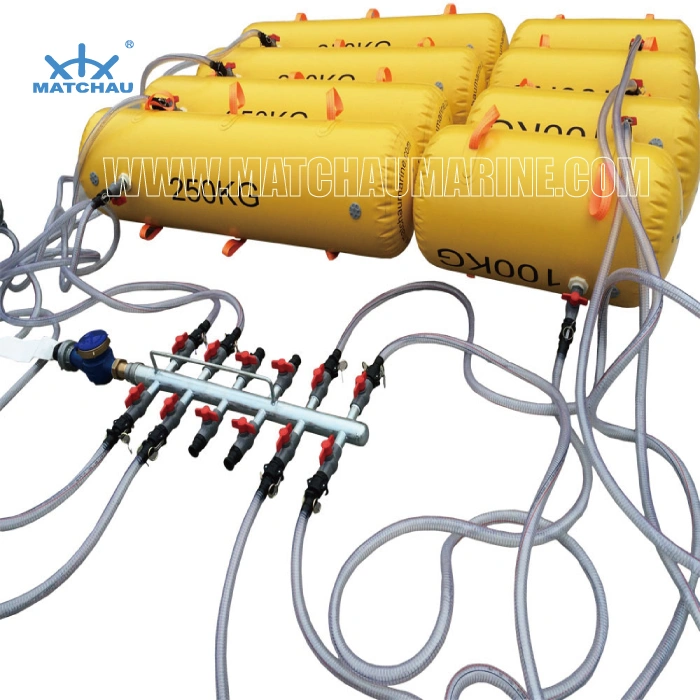

water bag Accessories (fillig kit)

Item	Descriptions	Length(m)	Specification	Bag Weight(kg)
1	Hose with end fittings	10	d50	1
2	steel-wired hose with end fittings	5	d25	12
3	steel-wired hose with end fittings	3	d50	1
4	1:12 manifold	/	d50-d25	1
5	Air driven pump	/	d40	1
6	Water meter	/	d40	1

Other capacity water bags can be produced according to customers requirements.




Company Information

Contact us if you need more details on Lifeboat Load Test Water Bags. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Water Bags、Water Weights. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Load Test Water Bags > Lifeboat Load Test Water Bags
